FD 346 Tabletop Document Folder

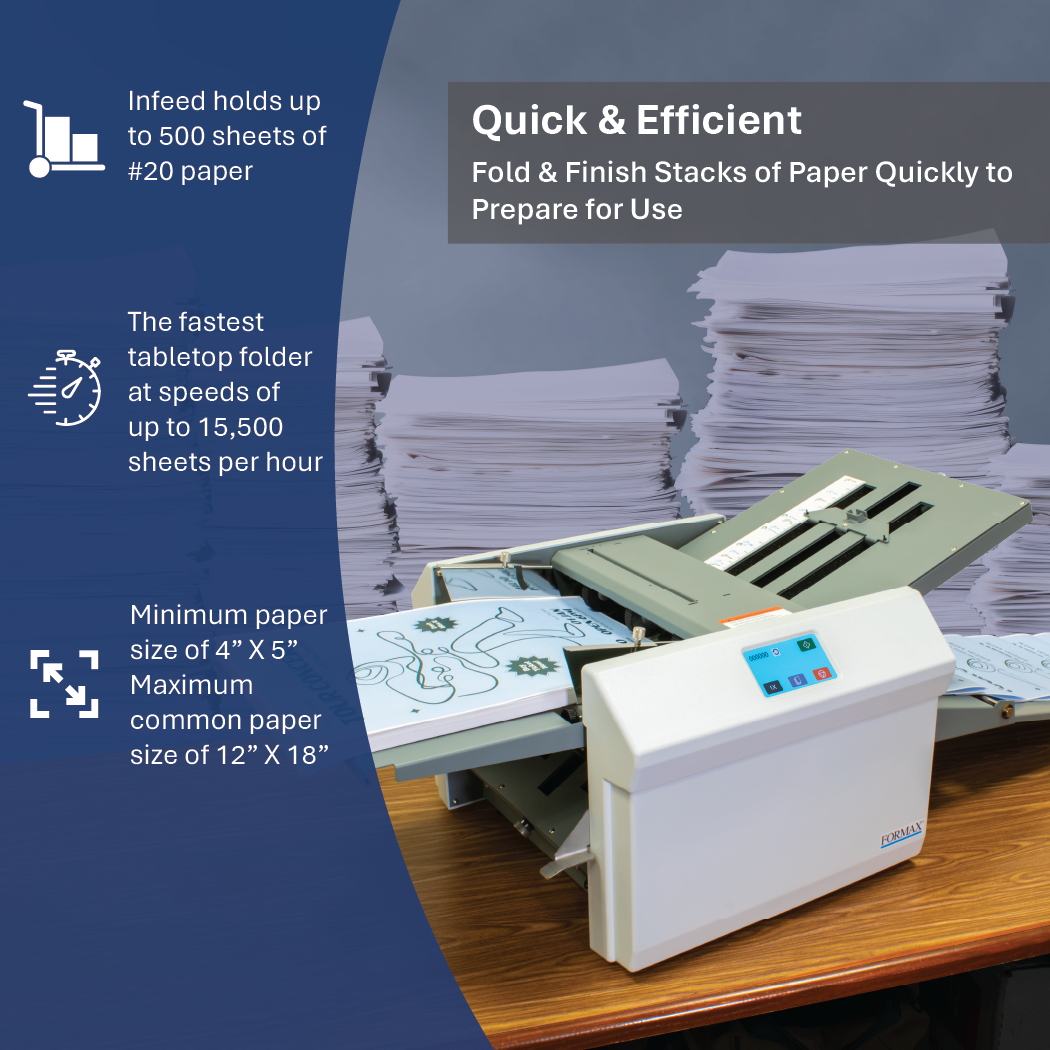

The FD 346 Document Folder is a fast, dependable and easy-to-use solution for virtually all folding applications. The color touchscreen control panel uses internationally-recognized symbols in place of text, making it easy for anyone to use. Six popular folds are clearly marked on the fold plates: simply slide the fold stop to the desired fold. Additional adjustments can be made with the fine tuning knobs at the end of each fold plate for precision folding.


Specifications

• Speed: Up to 15,500 sheets per hour – based on 11” (279mm) Z-Fold*, 6 Settings
• Hopper Capacity:Up to 500 sheets 20# (75gsm)

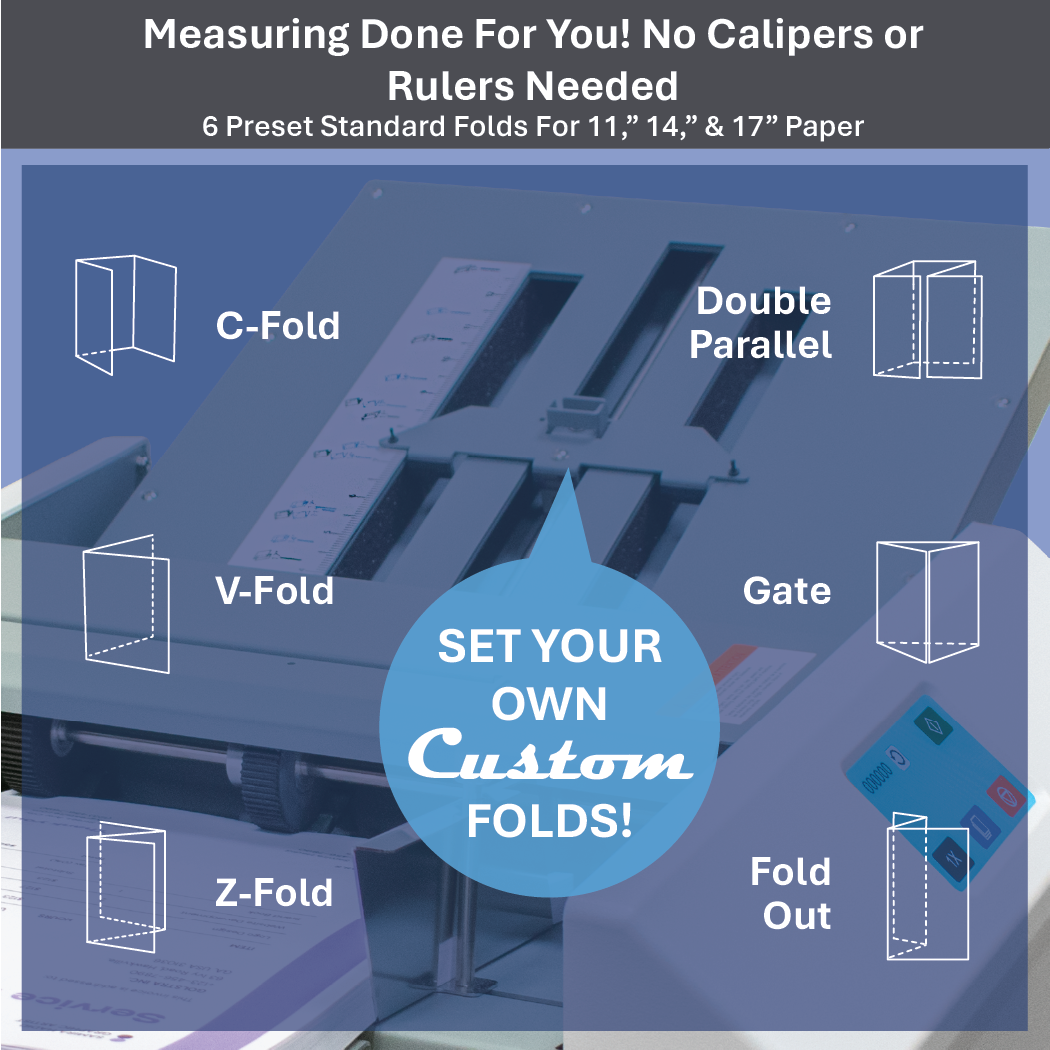

• Pre-Marked Folds:C, V, Z, Gate, Fold Out and Double Parallel
• Pre-Marked Paper Sizes: FD Model: 11”, 14”, 17”
• Paper Size: Min: 3.5” W x 5” L (88.9 W x 127 L mm)
• Max: 12.25” W x 18” L (311 W x 457 L mm)
• Dimensions: Closed: 33” L x 20” W x 19” H (84 L x 51 W x 48 H cm)
• Fully Extended: 60” L x 20” W x 19” H (152 L x 51 W x 48 H cm)
• Weight: 67 lbs (30kg)
• Power: FD Model: 110VAC 50/60 Hz
• Safety Certifications: UL, CUL, and CE approved
