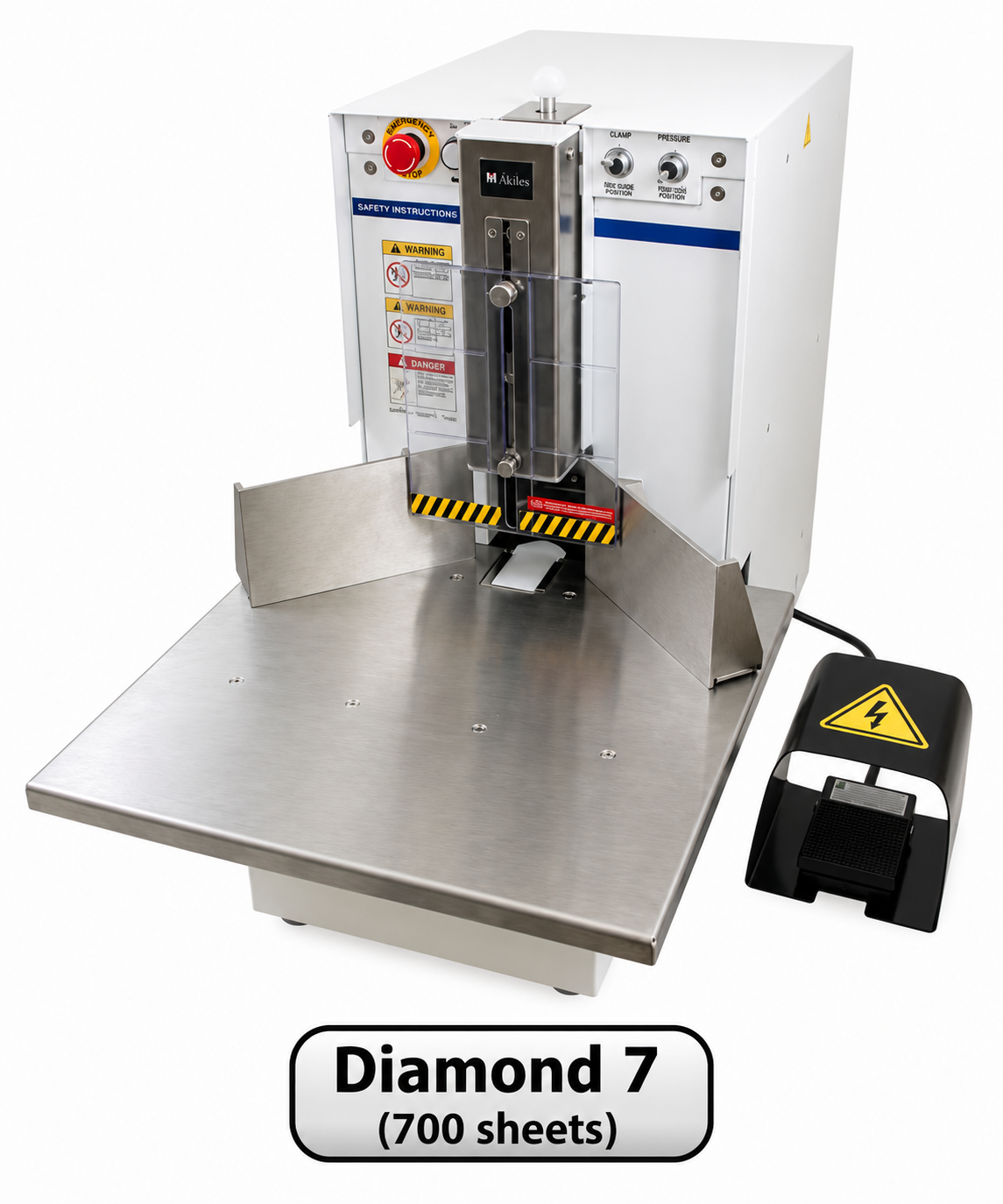

Diamond-7 Corner Rounding Equipment

The Diamond-7 is a top-of-the-line heavy-duty electric corner rounding machine designed for large-volume jobs that require maximum productivity. With an impressive cutting capacity of 2-3/4" (70mm), or approximately 700 sheets of 20 lb. paper, the Diamond-7 provides the power and efficiency needed for demanding production environments.

Designed for high-volume use, the Diamond-7 features both manual and automatic operating modes. Operators can switch between manual hand operation and automatic foot pedal operation, allowing both hands to remain free for positioning and handling materials.

A detachable pressing bar securely holds materials in place during the rounding process for greater control and consistent results. The pressing bar can also be easily removed when replacing knives, making the Diamond-7 especially convenient for operations that regularly change between different cutting applications.

The Diamond-7 features an interchangeable die system with seven available cutting options. A 1/4" radius die is included, while 1/8", 3/8", 1/2", 5/8", straight, and half-moon dies provide additional versatility. The patented upper die design and micro-adjustable lower die help produce smooth, accurate cuts on every job.

Powered by a 200W motor, the Diamond-7 is built for demanding production environments. A protective safety cover keeps hands away from the cutting area, while the large work table provides ample space for positioning materials. Separate built-in storage and scrap compartments keep tools organized and waste contained.

Features

• 700-Sheet Capacity: Cuts stacks up to 2-3/4" (70mm), or approximately 700 sheets of 20 lb. paper.

• Heavy-Duty Electric Operation: Built for demanding, high-volume corner rounding applications.

• 200W Motor: Provides the power needed for high-capacity production.

• Manual & Automatic Modes: Switch between manual hand operation and automatic foot pedal operation.

• Detachable Pressing Bar: Holds materials securely during cutting and detaches for easier knife replacement.

• Interchangeable Die System: Seven available cutting options provide versatility for a wide range of finishing applications.

• 1/4" Die Included: Comes ready for one of the most commonly used corner radiuses.

• Multiple Die Options: Available dies include 1/8", 1/4", 3/8", 1/2", 5/8", straight, and half-moon.

• Precision Die Design: Patented upper die design and micro-adjustable lower die help provide smooth and accurate cuts.

• Protective Safety Cover: Helps keep hands and fingers safely away from the cutting area.

• Heavy-Duty Foot Pedal: Provides convenient hands-free machine activation.

• Large Work Table: Provides plenty of space for positioning and handling materials.

• Built-In Storage & Scrap Bin: Keeps tools organized and collects cutting waste for easier cleanup.

Specifications

The Diamond-7 is designed for operations where productivity and cutting capacity are essential. With the ability to round up to 700 sheets at once, a powerful 200W motor, detachable pressing bar, and versatile interchangeable die system, it provides a professional corner rounding solution for print shops, commercial printers, copy centers, and other high-volume finishing environments.
