FC114ASP creasing, perforating, and numbering plus strike perforating
FC114ASP creasing, perforating, and numbering plus strike perforating
High-quality creasing, perforating, and numbering plus strike perforating.

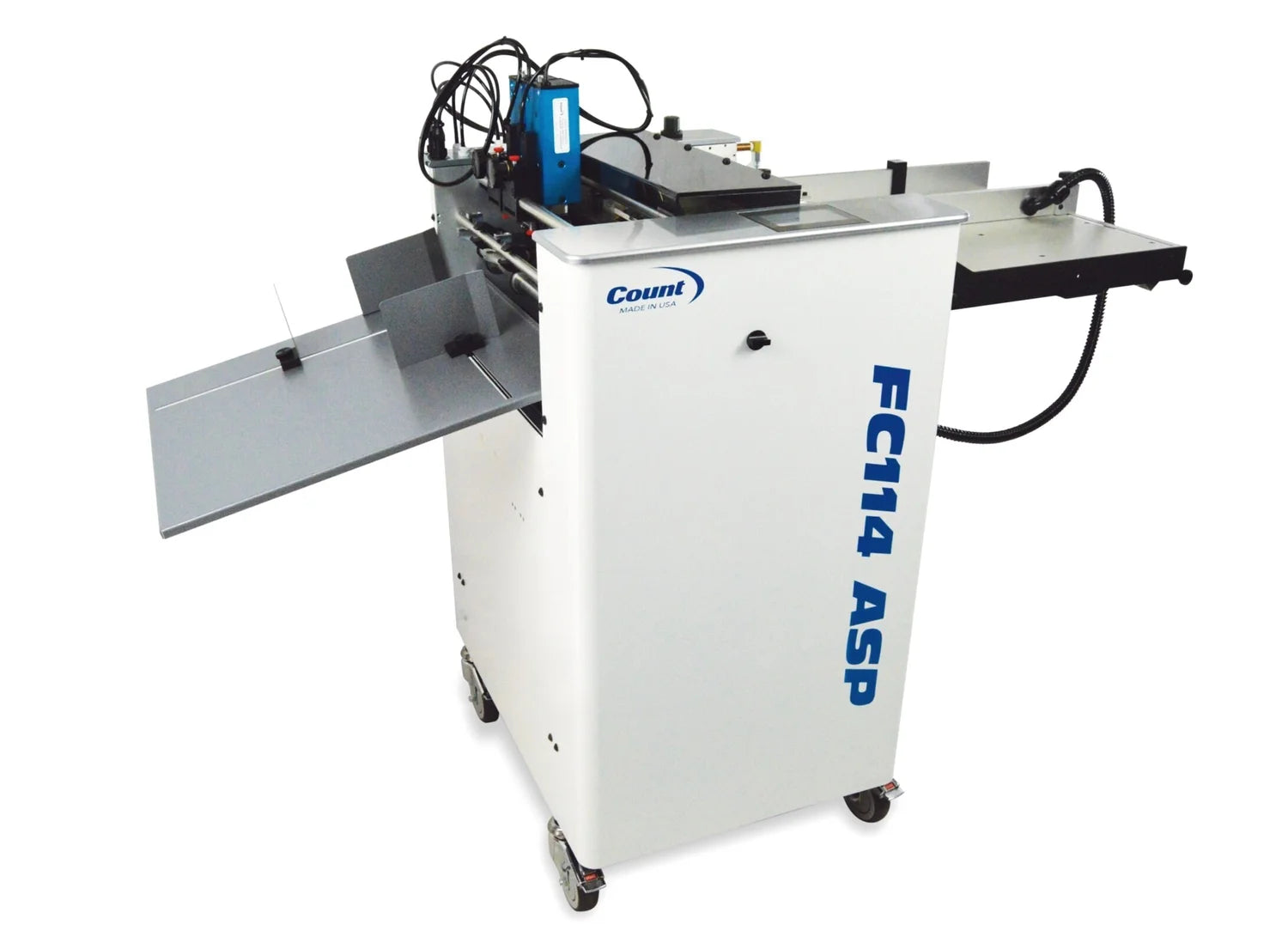

With the investment in a single machine, you can handle high quality numbering, creasing, rotary and strike perforating all-in-one. The FC114ASP has a reliable bottom vacuum-feed system. This machine delivers accurate CAM actuated compression creasing with 2 crease widths, pneumatic numbering up to 24 times virtually anywhere on the sheet, plus perforating, strike perforating, and optional micro-perforating. Strike perforating makes it easy to create custom 2 and 3-part partitions. It’s a compact, incredibly easy to use and highly versatile “all in one” solution that includes automatic “one-touch” set-ups.
Features
-
Reliable bottom vacuum feed system with a register guide.
-
Simple programming allows you to number, crease or perforate individually.
-

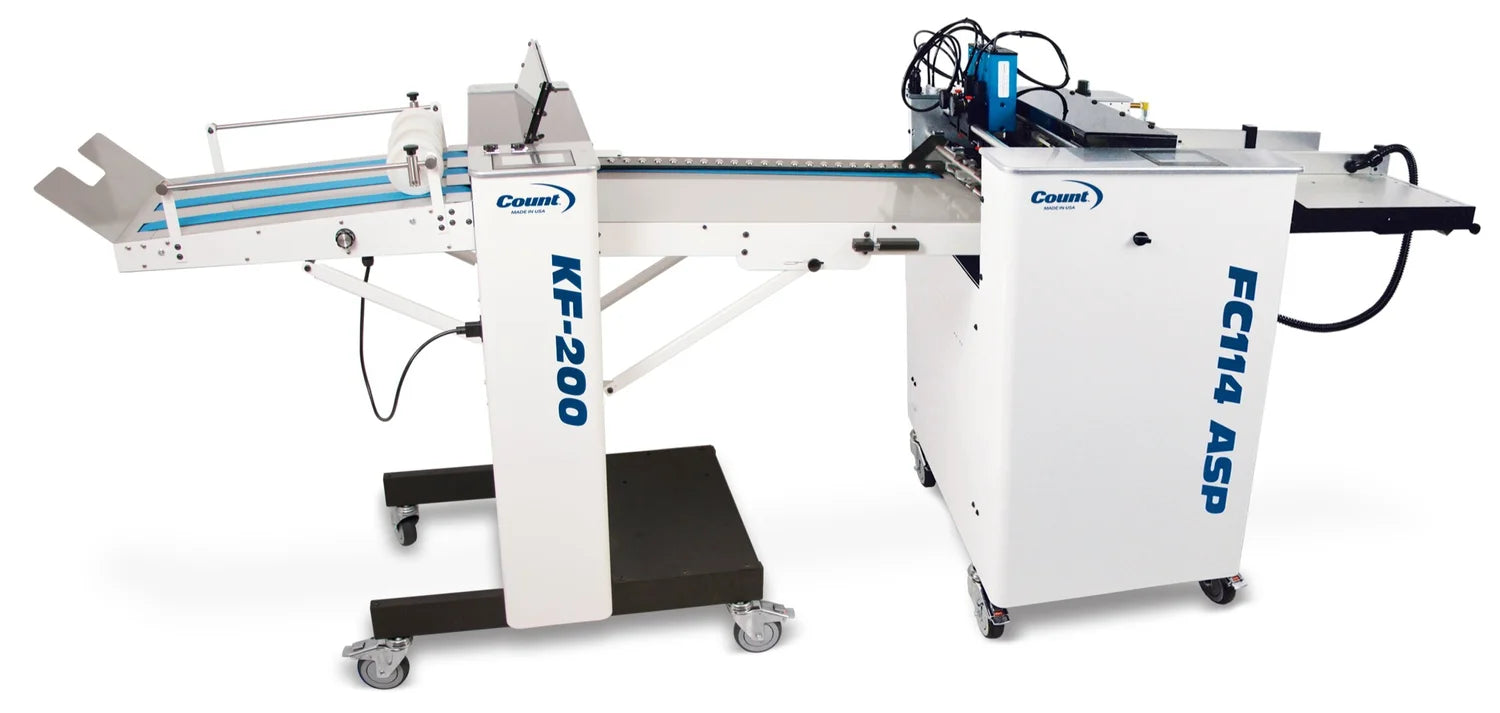

Accommodates inline folders like the KF-200.
Creasing
-
Ideal for custom two- and three-part partitions.
-
User-friendly touch screen for easy set up and control of the machine.
-
Two-sided die creasing rod accommodates for heavier stock-simply remove and flip over to change from narrow to wide crease.
-
Automated distance recognition–allows auto setups for your most common creases and corresponding folds.
-
CAM actuated compression creasing.
Perf/Scoring
-
Complete strike perforating assembly included, with linear perf capabilities up to 4 strike perfs per sheet-optional micro-perf and score wheel assemblies are available.
-
External air compressor is required for numbering and strike perforating.
(Compressor not included.)
Numbering
-
Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros and 4 repeats.
-
Flexibility to apply numbers virtually anywhere on a sheet–from lead edge, place numbers within 1 mm of previous number.
-
Number single sheets, or crash number up to a 10-part carbonless form.
-
Choice of black or red ink, in patented self-inking disposable cartridges–no re-inking required!–for approx. 25,000 impressions per cartridge.
-
Program each numbering head individually for multiple numbering.
-
External air compressor is required for numbering and strike perforating.
(Compressor not included.)
