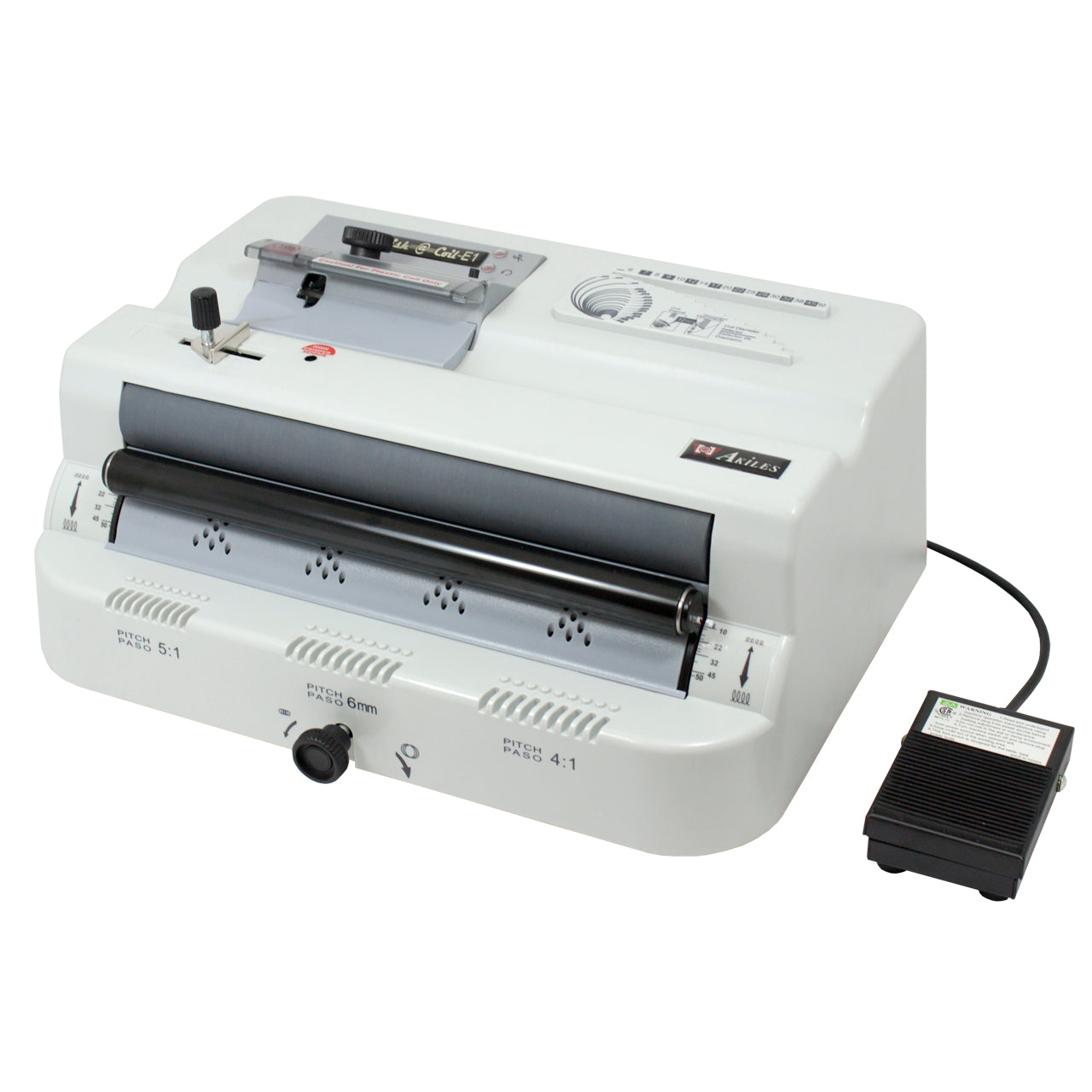

Finish@Coil-E1

Electric Coil Inserter with Built-In Electric Crimper

The Finish@Coil-E1 combines electric coil insertion and electric coil crimping in one easy-to-use machine. Designed for high-volume coil finishing, it accommodates coil sizes up to 50mm and features foot pedal operation to keep both hands free while inserting and crimping.

The full-size 11-3/8" EPDM roller provides high friction and durability for fast coil insertion. An adjustable bottom roller makes it easier to insert coils of different sizes, including extra-large diameters.

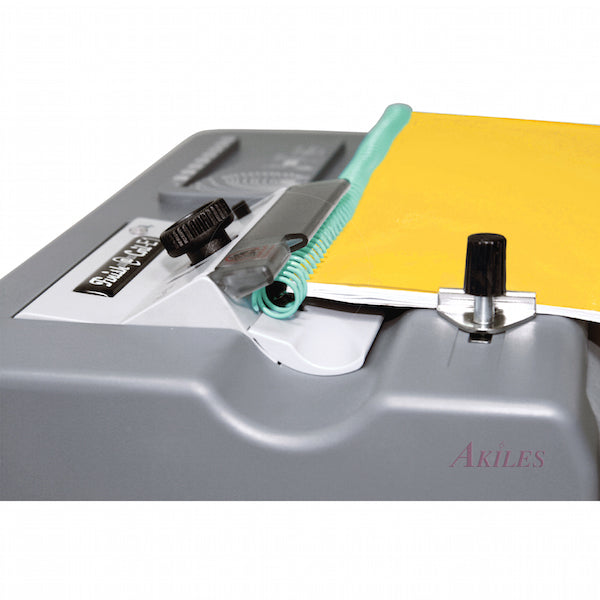

The built-in electric crimper cuts and crimps coil sizes up to 50mm with the press of the foot pedal. Its adjustable crimper head eliminates the need to purchase and install different crimper heads when changing coil sizes.

The Synchronized Roller/Crimper Adjustment helps set the proper roller position and crimper angle for different coil sizes. Operators can manually select between Insert and Crimp functions or use AUTO mode, which uses a built-in sensor to automatically switch the foot pedal between the two operations.

Features

• Electric Coil Insertion & Crimping: Combines both finishing operations in one machine.

• Up to 50mm Binding Capacity: Accommodates a wide range of coil sizes.

• 11-3/8" EPDM Roller: Full-size, high-friction roller provides durability and efficient coil insertion.

• Adjustable Bottom Roller: Makes inserting different coil sizes easier.

• Built-In Electric Crimper: Cuts and crimps coils up to 50mm using foot pedal operation.

• Adjustable Crimper Head: Accommodates different coil sizes without changing crimper heads.

• Foot Pedal Operation: Keeps both hands free while inserting or crimping.

• Manual & Automatic Modes: Manually select Insert or Crimp, or use AUTO mode to automatically switch between operations.

• Synchronized Roller/Crimper Adjustment: Helps properly set the roller position and crimper angle for different coil sizes.

• Coil Diameter Scale: Helps verify coil diameter.

• Coil Diameter Selector: Helps select the correct coil size based on document thickness.

• Pitch Identifier: Verifies that the coil pitch matches the punched document.

• U-Shaped Alignment Channel: Helps conform the spine of larger documents to the shape of the coil for easier insertion.

Specifications

The Finish@Coil-E1 combines electric insertion, electric crimping, adjustable controls, and foot pedal operation to provide an efficient solution for high-volume coil finishing.
