HLA-2501 High-Speed Laminator
HLA-2501 High-Speed Laminator
Easy laminating and trimming with included mobile cart
-
Quick warm-up time of about 6.5 minutes
-
Automatic single or double-sided lamination
-
2 Automatic trim options
- Flush-cut: precise, micro-adjustable with ± 3mm margin adjust
- Border-cut: custom-sealed options with 4-sided trim uniformity -
Hands-free, automatic feed tray
-
Simple operation with specially encoded film for auto settings

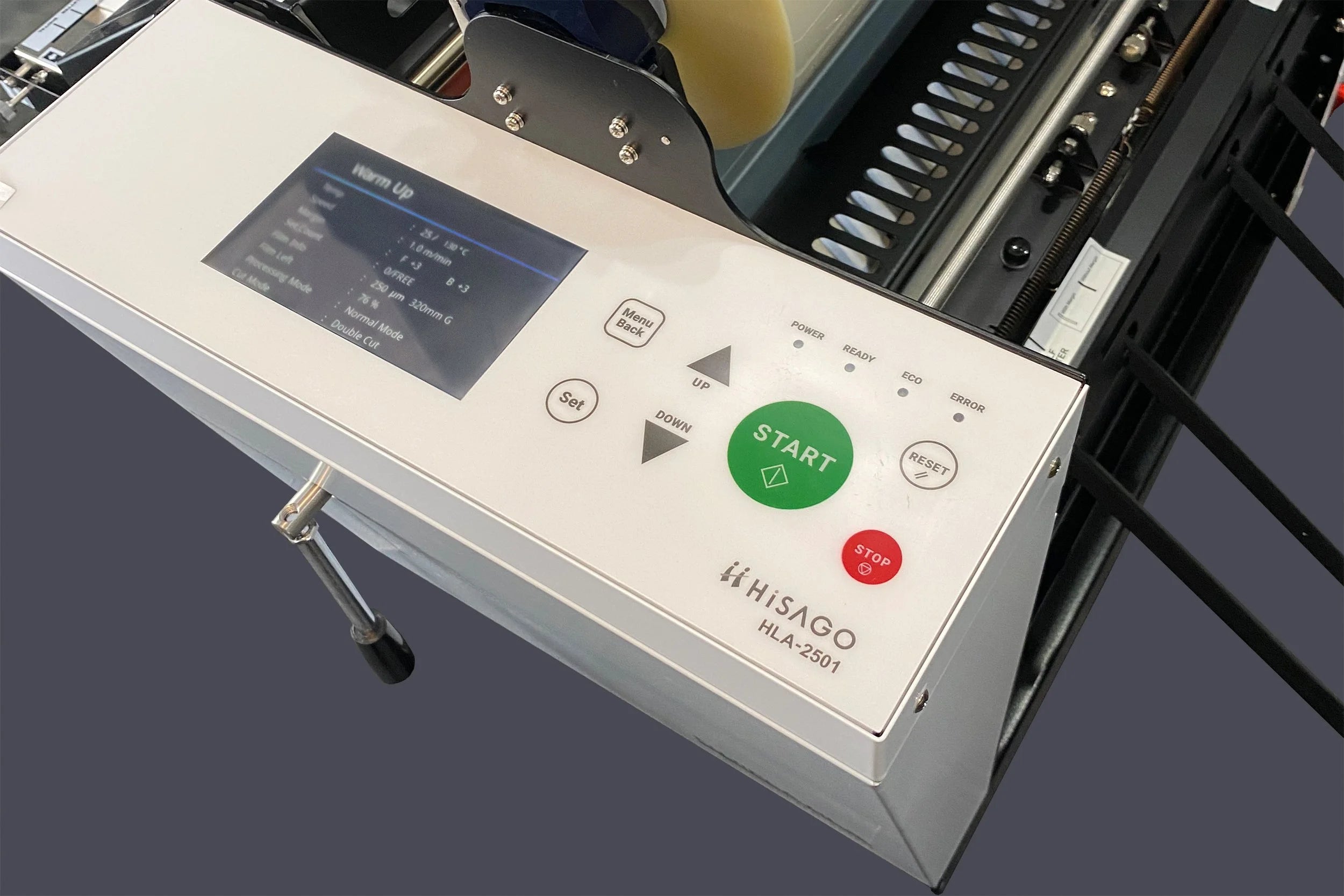

Easy-to-Use Color LCD Screen & Controls
Modern screen controls make operation simple and clear for easy usage by any user.

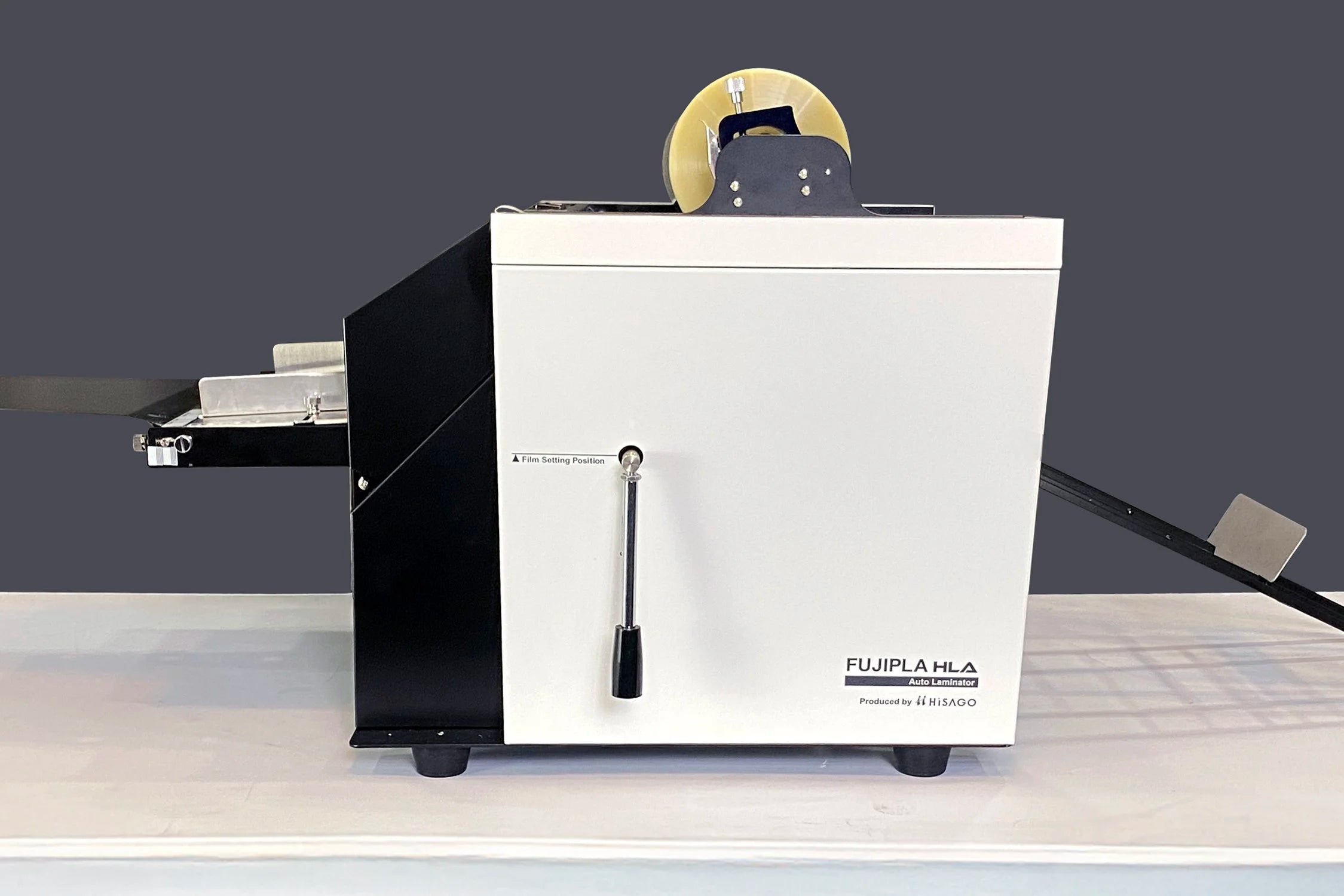

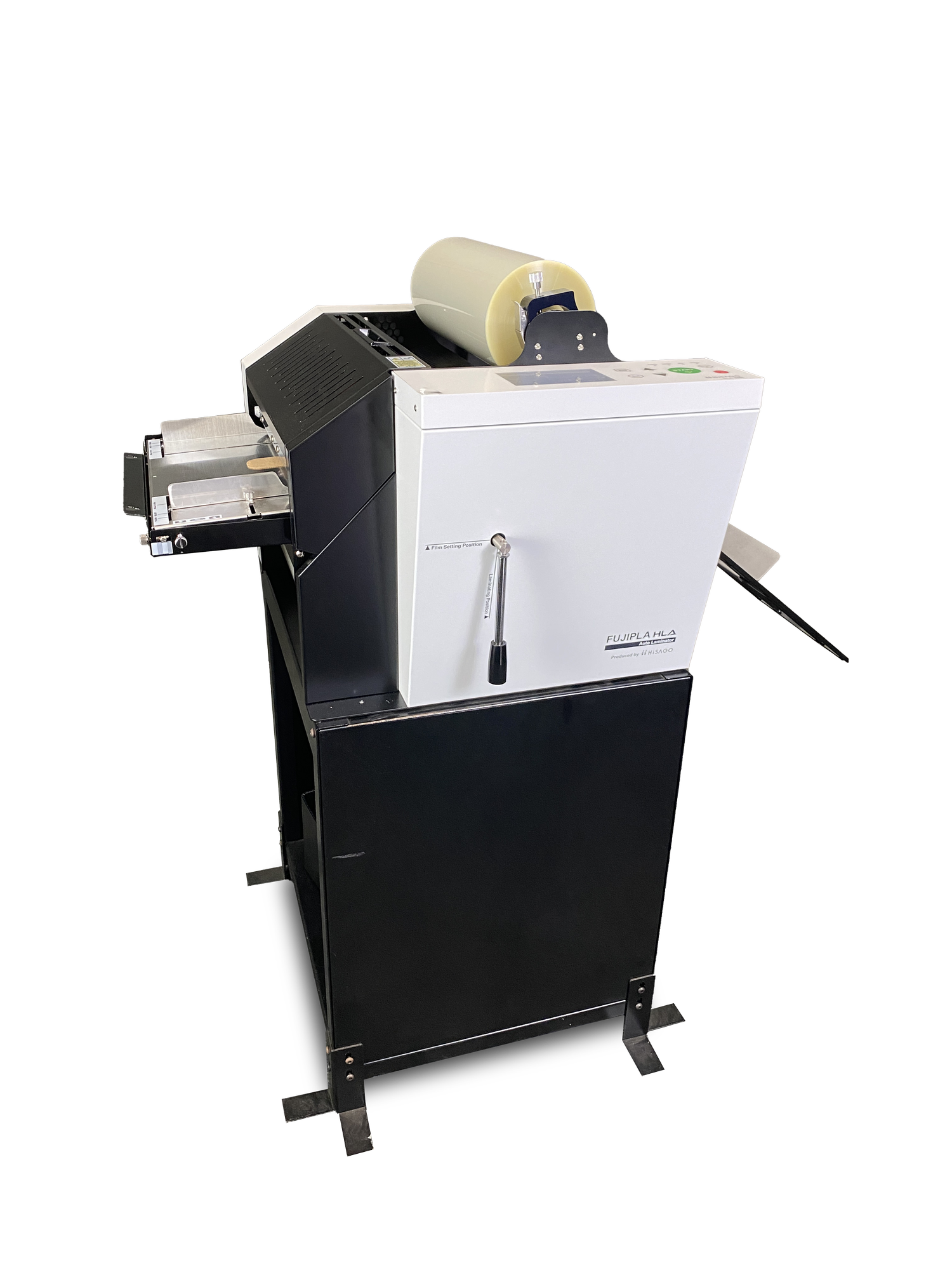

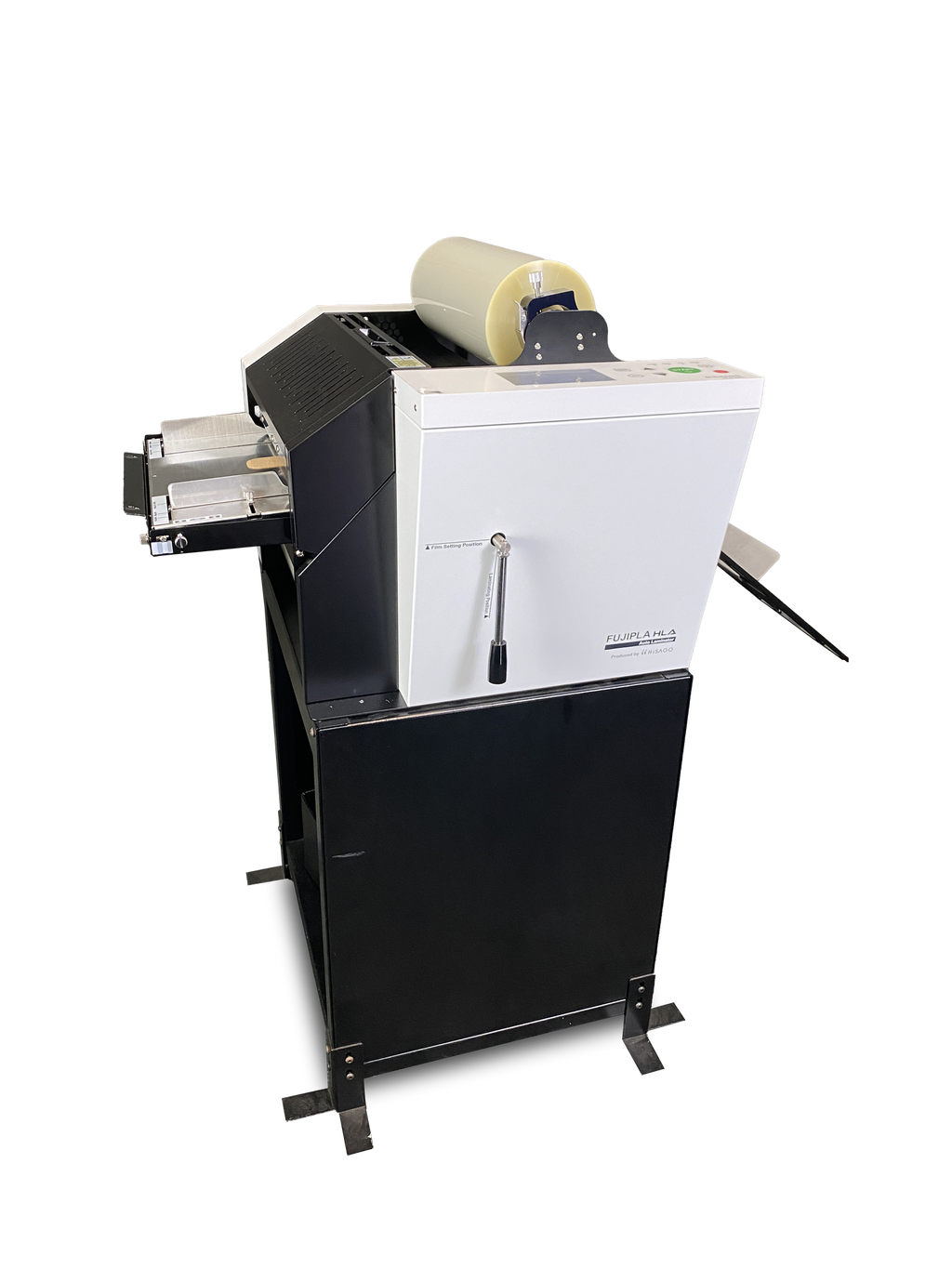

Desktop or Stand-alone
The HLA-2501 includes a stand for easy mobility but can also conveniently be placed on a desktop for ease-of-use.

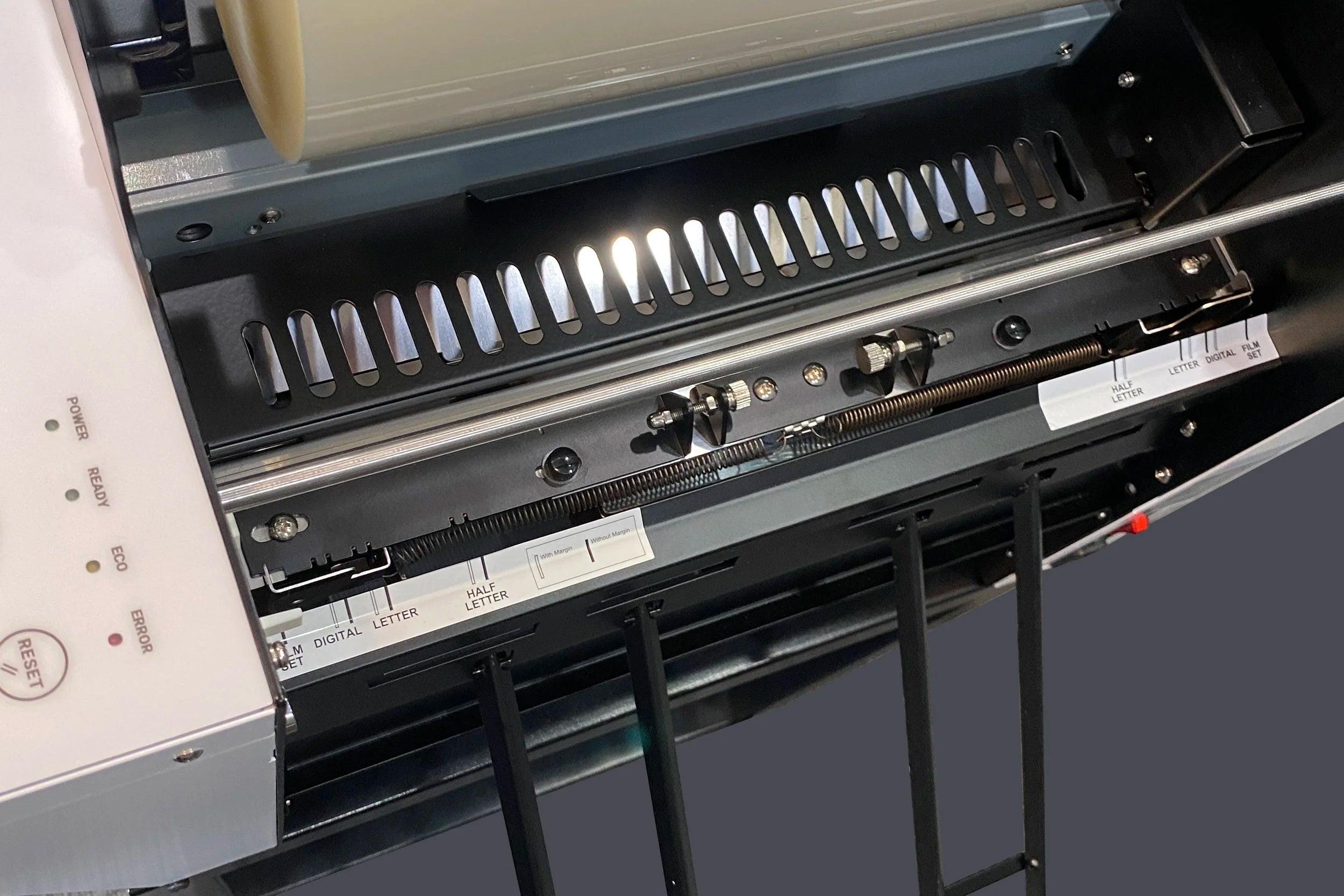

Simple-Slide Paper Size Adjustment
Easy-to-adjust paper size trimmer guides with micro-precision for exact cuts every time!

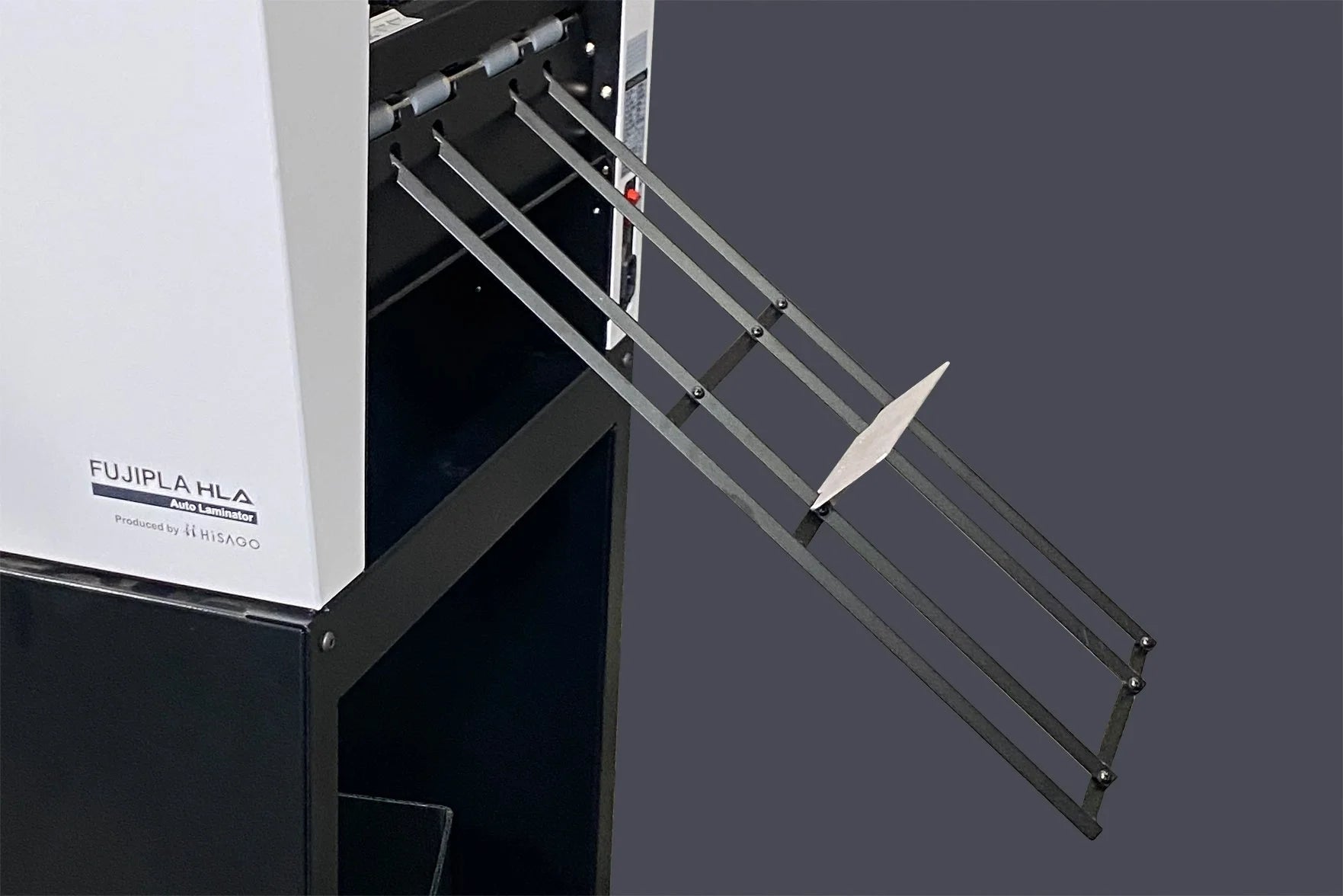

Multi-Position Catch Tray
The new multi-position catch tray is ideal for use with a variety of materials, accommodating both large and small sheets when you need it.
HLA-2501 Specifications
| Model | HLA-2501 |
|---|---|
| Laminating Width | 12.6" |
| Speed | 68" per min |
| Film Thickness | 1.2, 1.5, 3, 5 mil* |
| Laminating Thickness | 16 mil |
| Heat Type | Heated Rollers: Dual heat only |
| Temperature Range | 170 - 270°F |
| Warm-Up Time | ~6.5 minutes |
| Paper Sizes | 8.5”x5.5”, 8.5”x11”, 11”x17”, 12”x18”, 13”x19” |
| Paper Feed Capacity | 200 Sheets |
| Trimming Methods | Flush cut or Border cut; Double cut mode |
| Operation Panel | Color LCD display for start, stop, temperature, speed and trim settings, leading and trailing edge side cuts are adjustable |
| Voltage | 1200W |
| Power Supply | 100-240 VAC, 50-60Hz |
| Laminator Weight | 93 lbs |
| Dimensions (LWH) | 49" x 23" x 40.5" |
| Boxed Weight | - |
| Boxed Dimensions (LWH) | - |
