MBM Triumph 7260 VR CUT Ready Programmable Hydraulic Cutter

MBM Triumph 7260 VR CUT Ready Programmable Hydraulic Cutter

$35,266.00 USD
Sale price  $35,266.00 USD Regular price

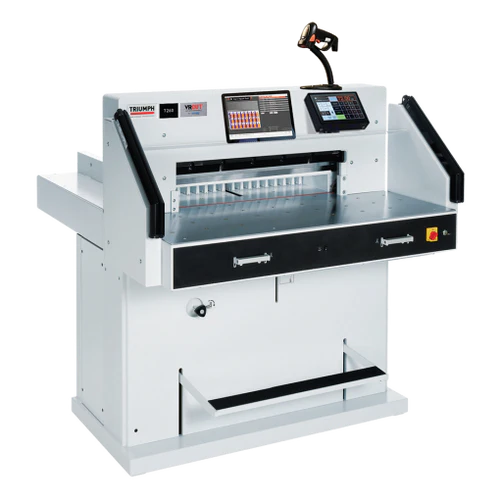

MBM 7260 VRCut Ready Triumph Cutter, with its advanced features and cutting-edge technology, is designed to meet the highest standards of performance and safety. The hydraulic wide format cutter is equipped with a 2 HP motor that drives its electric blade, allowing it to effortlessly cut through a stack of paper up to 3 inches thick. With a cutting width of 28 inches and a cutting length behind the blade of 28 3/8 inches, it offers ample space for various cutting tasks.

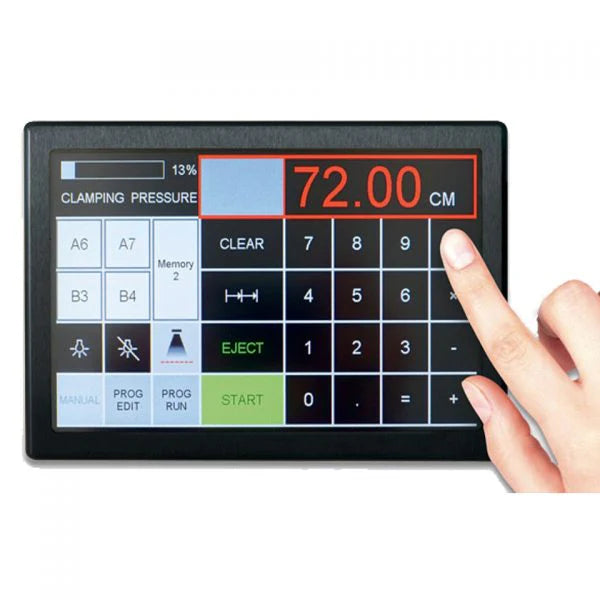

The hydraulic clamp of the Triumph 7260 VRCut Cutter ensures secure and precise paper holding during the cutting process. Its fully adjustable clamp pressure, ranging from 550 to 4,400 psi, provides complete control over the cutting operation to achieve optimal results. It has a 7-inch large touchpad that allows easy control of the power back gauge. With the ability to store up to 99 programs, each with 99 steps, you can quickly access and execute frequently used cutting sequences.

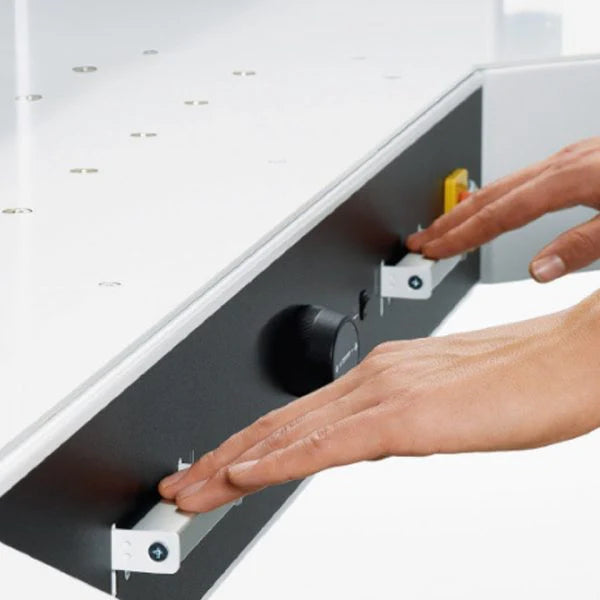

MBM 7260 VRCut Ready Triumph Cutter is equipped with an infrared light beam safety curtain to ensure maximum security during operation. It also features electronic blade activation bars for two-handed operation, an automatic blade clamp that returns from any position, and a disc brake for instant blade stop. These safety measures provide peace of mind and protect users from potential hazards.



Specifications

Type VRCUT Ready Cutters
Cutting Height 3 inch
Cutting Width 28 inch
Narrow Cut 3/4 inch
Length Behind Blade 28 3/8 inch
Clamp Type Adjustable Hydraulic
Blade Drive Electric
Back Gauge Electric
Safety Element IR light Beam Safety Curtain
Electrical Requirements 220 V, 3 Phase (Requires 20 Amp with L15-20 Receptacle)
Motor Output 2 HP
Dimensions (D x W x H) 60 ½ x 51 x 52 ½ inch
Weight 1,534 lb



Download Spec Sheet
