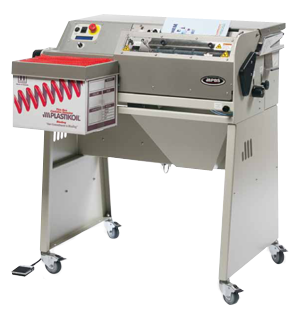

PBS 3000QS4 Auto Inserter

Quick Setup Automatic Coil Inserter/Finishing System

The PBS 3000 QS - Quick Setup Auto Coil Inserter / Finishing System- Automatically inserts pre-cut lengths of coil into the pre-punched book and simultaneously crimps both ends - all in a single operation! No tools are required for basic setup and changeover.

Features

Comes Complete:

• Set of 15 Spine Formers
• Tool Kit
• Photo Instruction Manual & Instructional DVD

Productivity

• As high as 600 books/hour

Available in .2475" OR 4:1 OR 6 mm Pitch

• For diameters from 6 mm to 20 mm

Recommended Wider 3:1 OR 2.5:1 Pitch

• For larger diameters up to 30 mm

Coil Capabilities

• 6 mm through 20 mm
• Up to 30 mm in wider pitch option

Available Formats

• 12"/A4 model (Binding edges from 5" to 12"/12.7 to 30.5 cm)
• 17"/A3 model (Binding edges from 5" to 17"/12.7 to 43 cm)

Offcut Disposal Drawer

Foot Pedal Actuated

Benefits

• QS - Quick Setup - no tools required for basic setup and changeover.
• Vertical book placement can accommodate tabs or wider covers
• Consistent simultaneous crimping of both coil ends.
• Low maintenance design - No need for expensive service contracts.
• Mounted on casters for easy movement.
• Can be interlined with the PLASTIKOIL® New Concept Former for in-line coil manufacturing and automated insertion.

Tech Specs

• 110 V OR 220 V Single phase
• Compressed Air required 80 psi @ 2 cfm
• CE Compliant
• Dimensions 36"W x 24"D x 42"H (92 cm x 61 cm x 107 cm)
• Net Weight - 190 lbs. (86 kgs)
