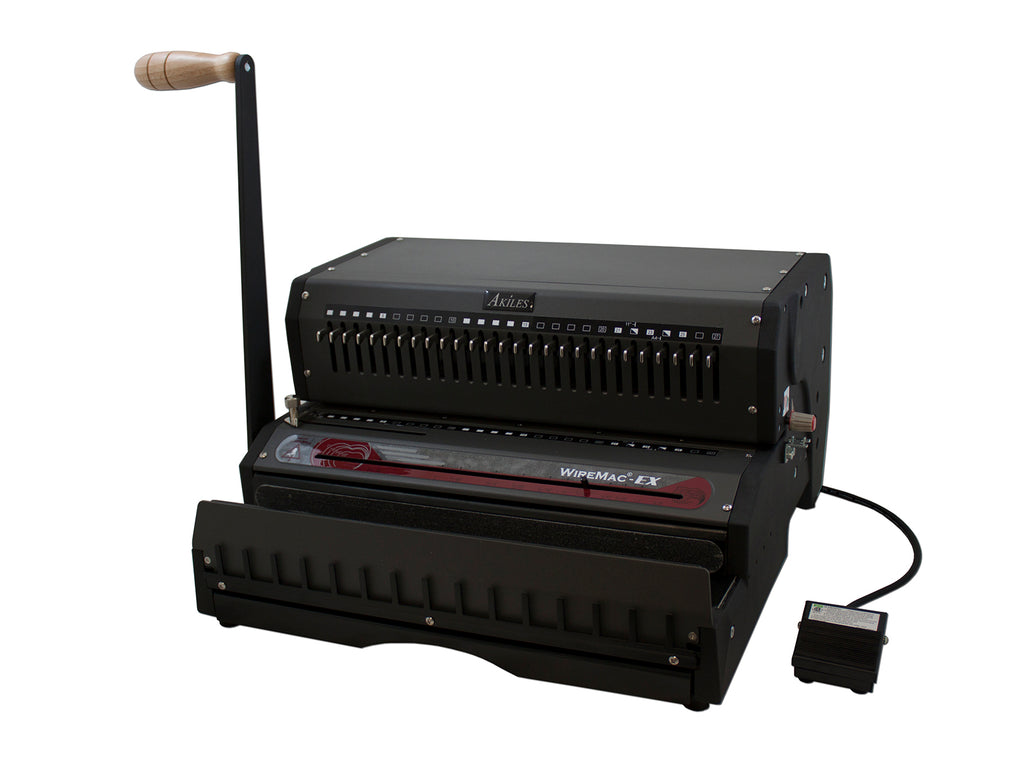

WireMac-EX Series

All-In-One Electric Wire Punch & Manual Wire Closer

The WireMac-EX Series combines heavy-duty electric punching with a built-in manual wire closer. Available in 3:1 pitch (WireMac-EX31) and 2:1 pitch (WireMac-EX21) models, it provides the punching and closing functions needed for wire binding in one machine.

Features

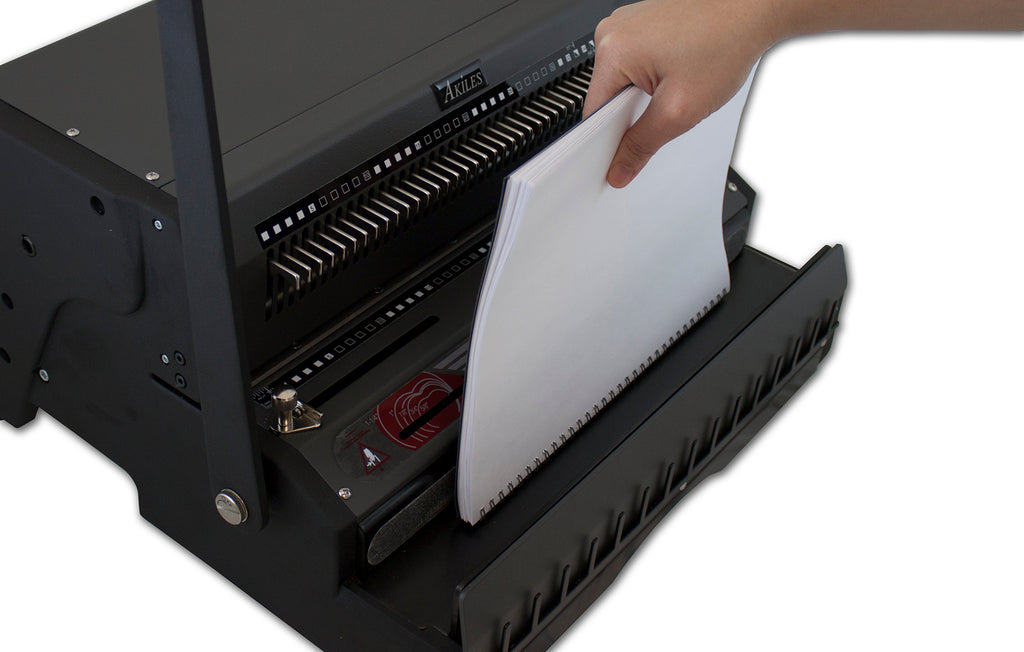

• Electric Punching: Heavy-duty punch motor for electric operation.

• Foot Pedal Operation: Keeps both hands free while punching.

• Two Models Available: Choose between 3:1 pitch and 2:1 pitch.

• 25-Sheet Punch Capacity: Punches up to 25 sheets of 20 lb. paper.

• 14" Open Punching Throat: Accommodates Legal-size and longer documents.

• Fully Disengageable Pins: Allows punching of different paper sizes.

• 4-Position Depth Margin Control: Adjusts the punching depth margin.

• Side Margin Control: Helps center documents for punching.

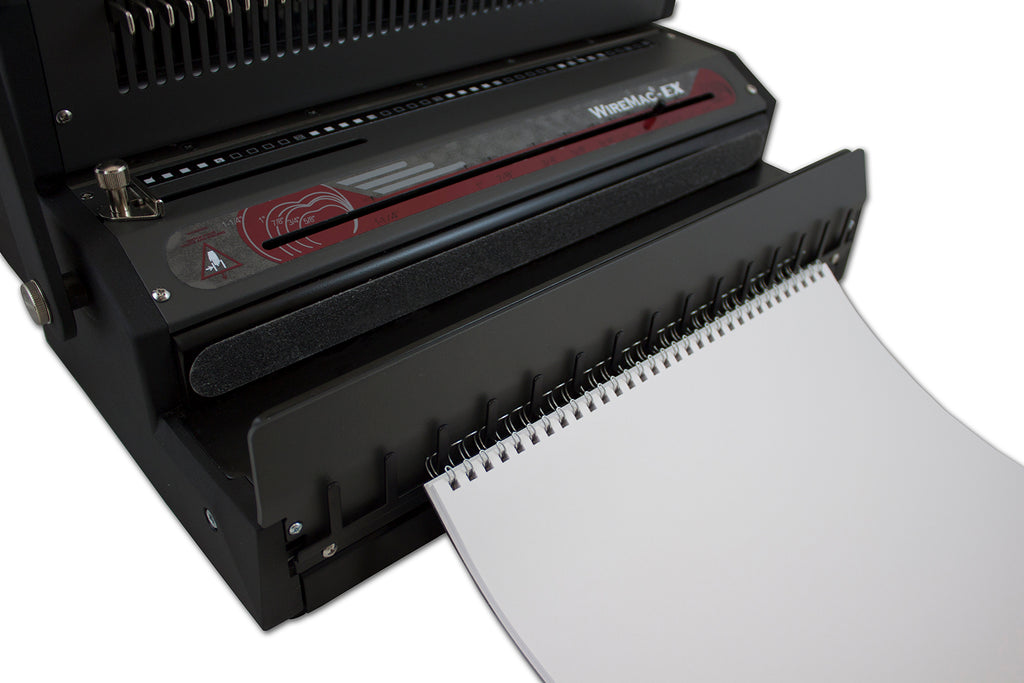

• Built-In Wire Closer: Closes wire from 3/16" to 1-1/4".

• Wire Holder: Holds wire in position during the binding process.

• Reverse Function: Allows the punch motor to be manually reversed in case of a jam.

• Waste Drawer: Collects punched paper waste.

WireMac-EX31 Specifications

Pitch: 3:1
Punching Operation: Electric – Foot Pedal
Punching Capacity: Up to 25 Sheets of 20 lb. Paper
Punching Length: 14" with Open Throat
Hole Size: 4mm × 4mm Square
Disengageable Pins: All 40
Wire Closing Capacity: 3/16" to 1-1/4"
Dimensions: 19" W × 16" D × 17.5" H
Weight: 55 lbs.
Warranty: 1 Year

WireMac-EX21 Specifications

Pitch: 2:1
Punching Operation: Electric – Foot Pedal
Punching Capacity: Up to 25 Sheets of 20 lb. Paper
Punching Length: 14" with Open Throat
Hole Size: 4mm × 5.5mm Rectangular
Disengageable Pins: All 27
Wire Closing Capacity: 3/16" to 1-1/4"
Dimensions: 19" W × 16" D × 17.5" H
Weight: 55 lbs.
Warranty: 1 Year
