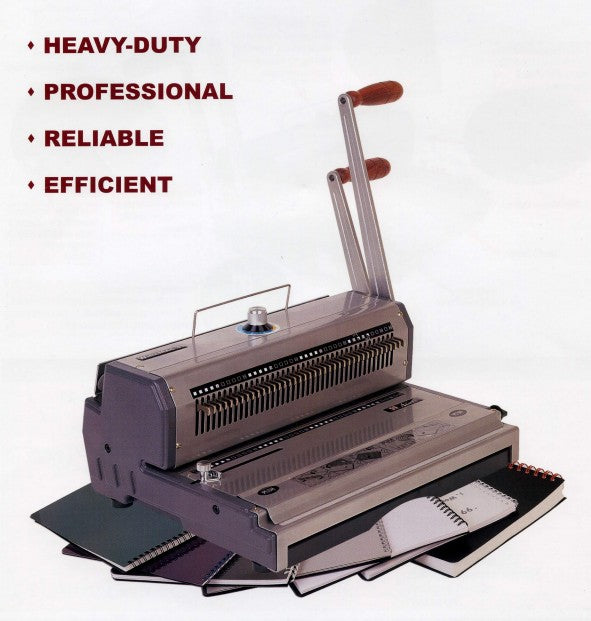

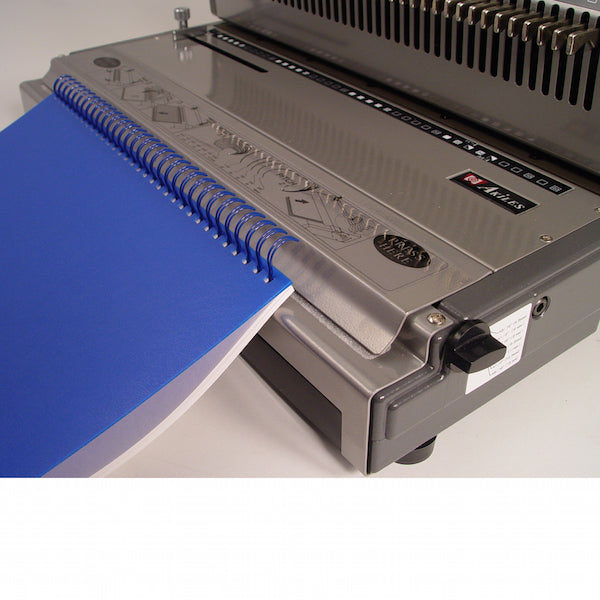

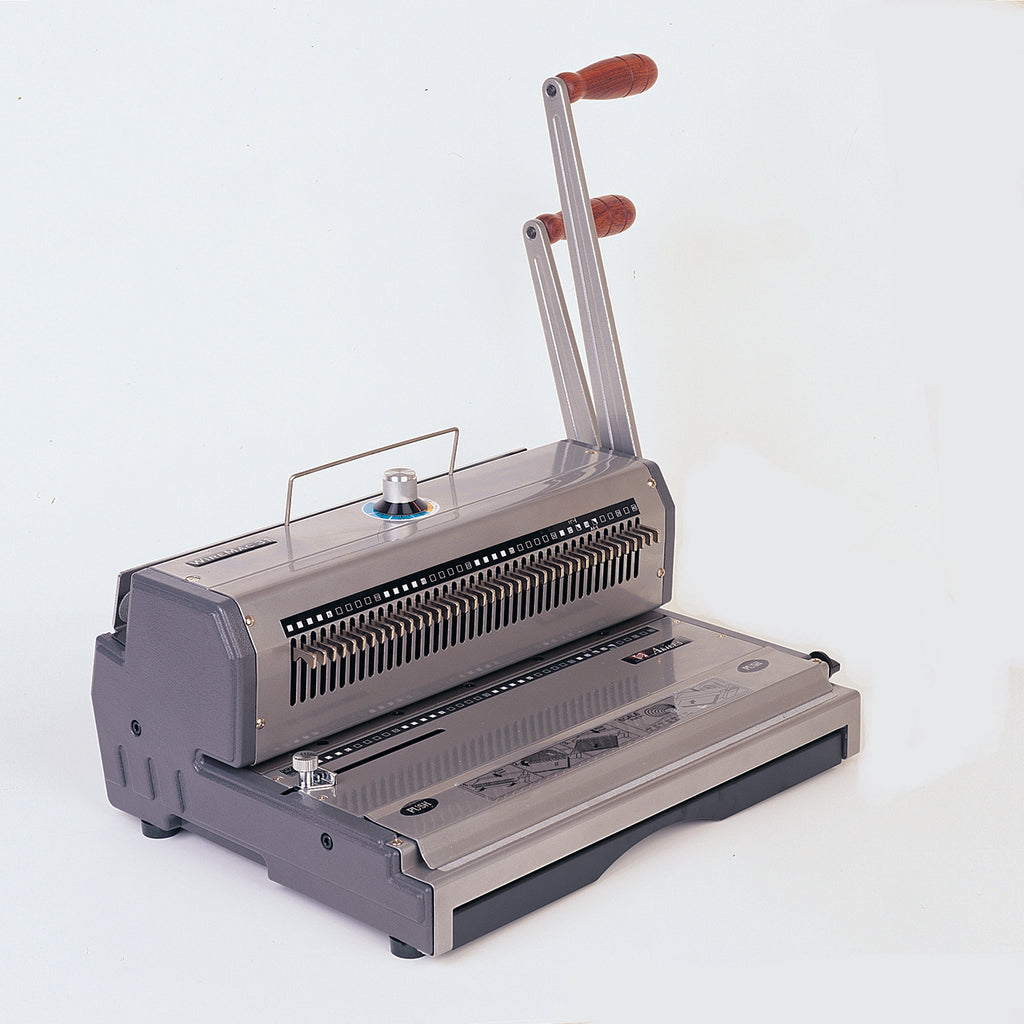

WireMac

Heavy-Duty Wire Punch & Binding Equipment

The WireMac combines manual punching and wire closing in one heavy-duty machine. Available in 3:1 pitch (WireMac-31) and 2:1 pitch (WireMac-21) models, it punches up to 20 sheets of 20 lb. paper at a time and accommodates documents up to 14" wide, with open sides for even wider documents.

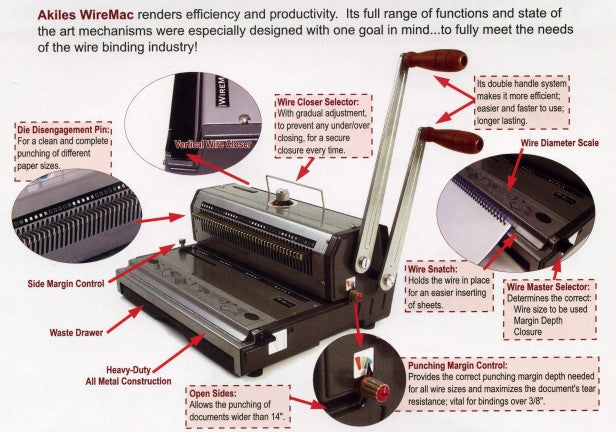

Features

• 20-Sheet Punch Capacity: Punches up to 20 sheets of 20 lb. paper.

• Two Models Available: Choose between 3:1 pitch and 2:1 pitch.

• 14" Punching Length: Open sides accommodate wider documents.

• Fully Disengageable Dies: All dies can be independently disengaged for different document sizes while preventing partial side-end perforation.

• Vertical Closing Mechanism

• Master Selector: Included.

• Closer Selector: Included.

• Wire Diameter Scale: Included.

• Side Margin Control: Included.

• Punching Margin Control: Included.

• Metal Wire Snatch: Included.

• All-Metal Construction

WireMac-31 Specifications

Pitch: 3:1
Punching Length: 14"
Punching Dies: 40
Disengageable Dies: All 40
Hole Punch: Square – 0.157" × 0.157"
Binding Thickness: 3/16" to 9/16"
Punching Capacity: Up to 20 sheets of 20 lb. paper
Closing Mechanism: Vertical
Weight: 45 lbs.
Volume: 2.55 cu. ft.
Warranty: 1 Year

WireMac-21 Specifications

Pitch: 2:1
Punching Length: 14"
Punching Dies: 27
Disengageable Dies: All 27
Hole Punch: Rectangular – 0.157" × 0.217"
Binding Thickness: 3/16" to 1-1/4"
Punching Capacity: Up to 20 sheets of 20 lb. paper
Closing Mechanism: Vertical
Weight: 45 lbs.
Volume: 2.55 cu. ft.
Warranty: 1 Year
